Description:
Name: Tail Light Kit

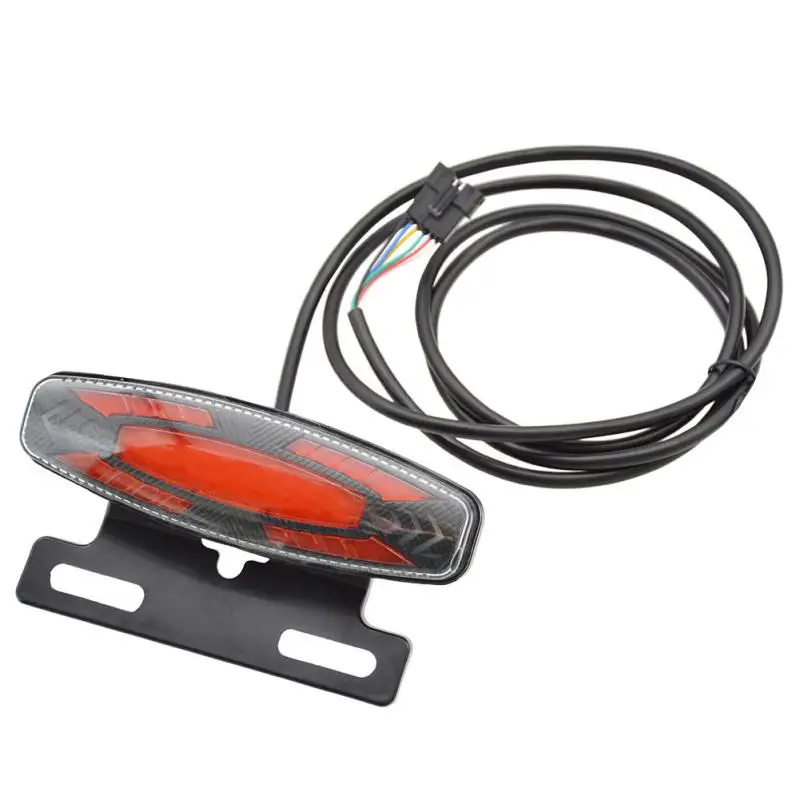

【Product name】Multifunctional tail light
[Outlet] six-core wire
【Specification】13 x 3.1 x 4CM without bracket
【Voltage】24V-48V
【Function】Night running lights, car lights, left and right turn signals
【Weight】141G
【Material】ABS+LED
[Line length] 1.5 meters left

[Product name] car light horn two-in-one LED headlight
[Outlet] three-core wire
【Specification】6.2 x 5 x 7.3CM
【Weight】104G
[Function] Headlights, horns
[line length] about 1.5 meters
【Material】ABS+LED

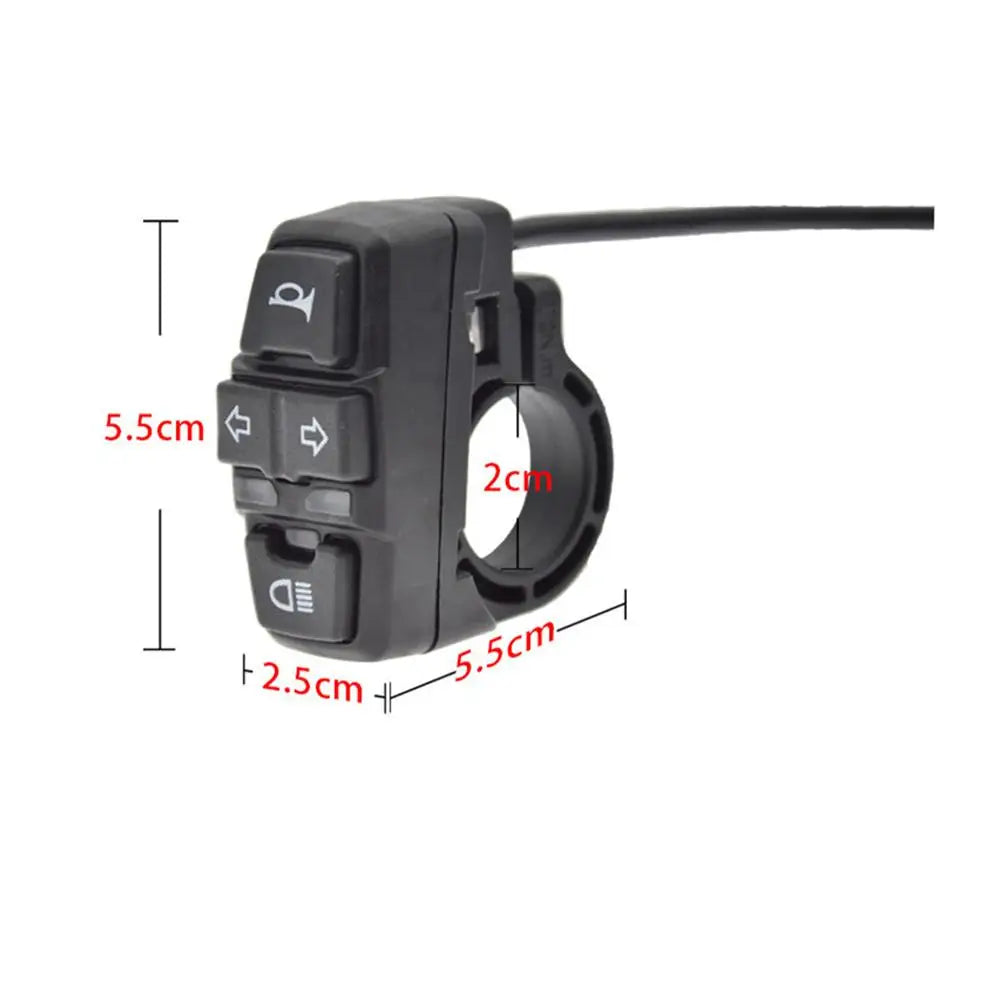

[product name] horn + headlight + turn signal button integrated
[Outlet] six-core wire
【Specification】5.5 x 5.5 x 2.5CM
【Weight】83g
【Material: Nylon
[line length] about 1.7 meters

Notice:
1: This product is not suitable for Bafang or TSDZ mid-mounted motors.
2: This product needs to be connected to the same battery as the controller,

otherwise the braking function cannot be activated.
3: Connecting to the brake requires the controller to be a low-speed brake.

Feature:

Running lights: When the switch is turned on, the headlights and tail lights are on.

Horn: Press the horn button, the horn starts to work, release it to cancel.

Brake light: When the brake signal wire and the brake low-voltage signal of the controller are connected normally,

the brake light is on, and the brake light is off when the brake is canceled.

Turn signal: When the turn switch is turned, the turn signal in the corresponding direction starts to work and flashes.

Packing list:
1 Tail Light Kit
